Video
HDMI
MimoVue with TanvasTouch
Feel the magic of TanvasTouch® surface haptics integrated into the leading 10.1” monitor
The first commercial product for digital signage and conference rooms combines the quality and durability of the Mimo Vue display with TanvasTouch surface haptics.
at

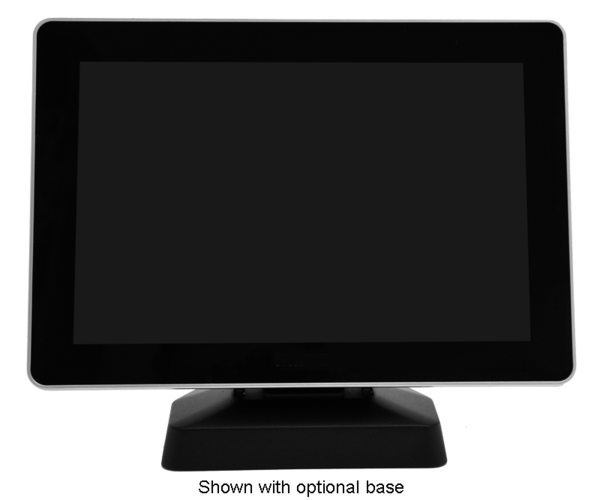

Mimo Vue with TanvasTouch®
Standard
The Mimo Vue with TanvasTouch is the first surface haptic touchscreen for digital signage and conference rooms. This new technology is completely programmable and has a wide variety of applications.
Specs
DISPLAY SECTION
TypicalTouch
USB (HID Compliant)
Contrast
800:1
Luminance
350 cd/m2
Viewing Angle
85/85/85/85 (U/D/L/R)
VUE HD
Plug and Play
Yes
UP / Down Scaling
Yes
Firmware Upgradeable
Yes
Operating Temperature
-10 to 50 C
Storage Temp
-30 to 50 C
Power Consumption
10 W (max)
TANVASTOUCH® SURFACE HAPTICS
Haptic Output
Fingertip-localized variable friction
Surface Haptic Effects
Software-defined
Compatible Drivers
TanvasTouch® Engine
Spatial Resolution
Pixel Resolution - 1280 x 800
Amplitude Resolution
8-bit
Operating Systems
Windows
Mimo Vue with TanvasTouch®
OPEN FRAME
The Mimo Vue with TanvasTouch Open Frame model is for applications that will be integrated into other equipment or enclosures. It has the same design features as the Standard product but in a long-lasting molded metal product cycle-enclosure.
Specs
Display Section
Video
HDMI
Touch
USB (HID Compliant)
Contrast
800:1
Luminance
350 cd/m2
Viewing Angle
85/85/85/85 (U/D/L/R)
Vue HD
DatasPlug and Play
Yes
UP / Down Scaling
Yes
Firmware Upgradeable
Yes
Operating Temperature
-10 to 50 C
Storage Temp
-30 to 50 C
Power Consumption
10 W (max)
TANVASTOUCH® SURFACE HAPTICS
Haptic Output
Fingertip-localized variable friction
Surface Haptic Effects
Software-defined
Compatible Drivers
TanvasTouch® Engine
Spatial Resolution
Pixel resolution - 1280 x 800
Amplitude Resolution
8-bit
Operating System
Windows
FAQs
-
How much does the Mimo Vue with TanvasTouch® cost?
– The Mimo Vue with TanvasTouch product sells for $699.99
– The Mimo Vue with TanvasTouch Open Frame sells for $699.99 -
What’s the difference between the Mimo Vue with TanvasTouch® and the Mimo Vue with TanvasTouch® Open Frame model?
The Mimo Vue with TanvasTouch standard product is a 10.1″ touchscreen that combines the quality and durability of the Mimo Vue display with TanvasTouch surface haptics, programmable textures and feelings on flat, physical surfaces. The Open Frame model is for applications that will be integrated into other equipment or enclosures. It has the same design features as the Standard product but in a long-lasting molded metal product cycle-enclosure. To view detailed specifications for each product and download a data sheet, visit the Product page and select Standard or Open Frame.
-
I am interested in commercializing this technology. What’s the next step?
To upgrade your end user license or explore commercial use of TanvasTouch technology or products, please fill out the form on our Contact page.
-
I have a project that falls outside the 10.1” size of the Mimo Vue with TanvasTouch® product. Can you accommodate customization?
At this time, the 10.1″ size is the standard available, however we recognize there are projects and product integrations that may require different sizes. To speak with a Tanvas representative about your requirements, please fill out the form on our Contact page.
-
I’m having trouble getting my Mimo Vue with TanvasTouch® set up. Do you have videos and other documentation?
Absolutely! Visit our Resources Portal for system requirements, setup instructions, reference documentation and more.
-
I’m super proud of what I’ve built using the Mimo Vue with TanvasTouch®. Where can I submit my project for review and free promotion?
One of the most exciting things for our team is to see others innovating with surface haptics! If you’ve developed something the world needs to know about, tell us about your project by sending a detailed description to press@tanvas.co
Buy Now
Ready for Production?
Visit our partner Mimo Monitors to purchase the Mimo Vue with TanvasTouch
